Cable/connector assemblies

Wilcoxon’s new molded, 5-socket M12 style RM12W connector is durable, IP67 rated, and ideal for process applications and permanent sensor installations.

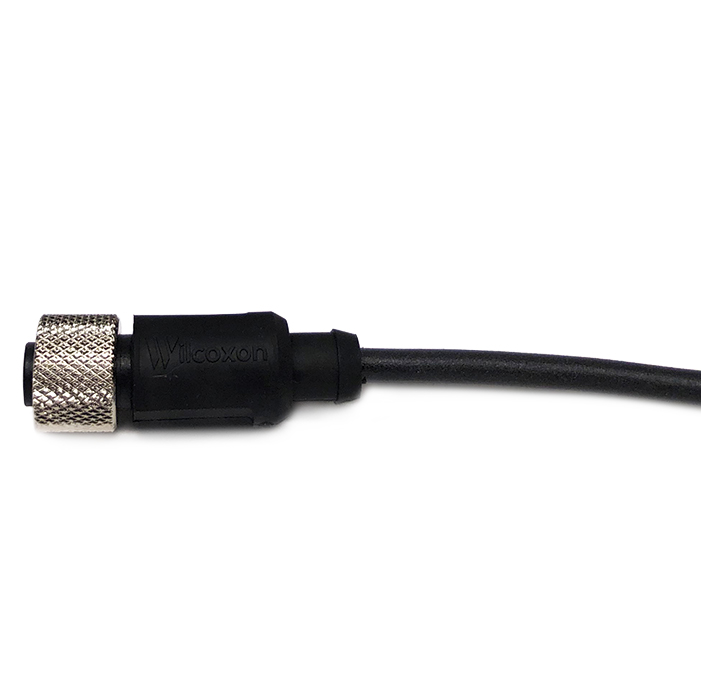

RM12W 5-socket molded connectors

Model: RM12W

Compatible with most M12 vibration sensors, the 5-socket M12 RM12W connector features an IP67 rating and molded Santoprene strain relief. It's an excellent option for permanent sensor installations in a variety of harsh industrial environments.

Key features and benefits

IP67 rating: dust-tight and submersible to 1 m
5-socket M12 connector
Compatible with 4-pin M12 sensors and 2- or 4-conductor cables
Molded Santoprene strain relief provides durability and strong chemical resistance
Rated for 105°C operation
Slim design for compact areas

Specifications
Applications
Compatible sensors and cables

[table “7” not found /]

Process control systems
Industrial manufacturing facilities
Chemical processing plants
Refineries

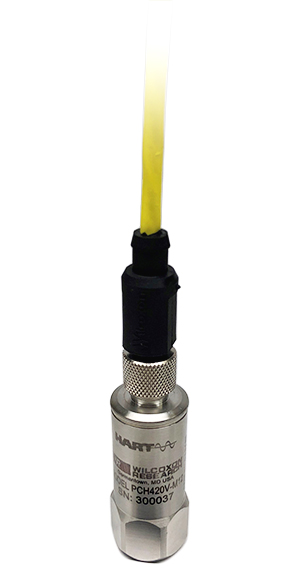

The RM12W connector mates with any of Wilcoxon’s 4-pin M12 sensors, including general purpose, low frequency, and triaxial accelerometers as well as the HART-enabled PCH420V-M12 sensor and PC420 series 4-20mA sensors.

Wilcoxon offers several 2- or 4-conductor cable options compatible with the M12W connector.
[table “8” not found /]
