Vibration transmitters – iT series

Wilcoxon’s new intelligent vibration transmitters measure and process dynamic vibration signals. iT series modules are a powerful means of connecting standard vibration sensors to process control systems, with a variety of options for input signals, a wide frequency response, selectable band filters and detector types, and flexible output mapping options.

iT150

iT150 transmitter provides easy plug and play capability.

Upgrade from legacy iT100/200 series

Compatible with dual temperature/vibration inputs

iT300

iT300 is the next generation transmitter for your vibration monitoring needs.

Easily configurable in the field

No standalone software needed

Dual mappable 4-20 mA outputs

iT301

iT301 has the same valuable features of the iT300, plus:

MODBUS/RS485 enabled

Configurable low/high alarms

Mappable NC/NO relay

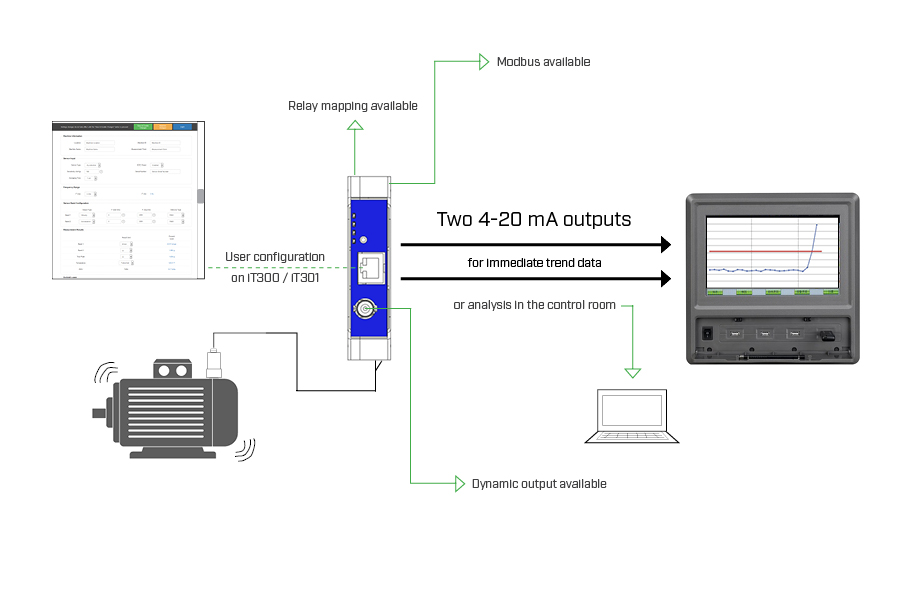

How it works

The iT series vibration transmitters allow for an IEPE acceleration, velocity, or temperature measurement to be converted into two separate 4-20 mA outputs. Field configuration, MODBUS communication, and relay mapping are some of the features available with these new intelligent transmitters.

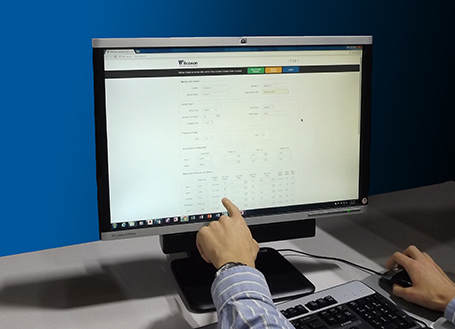

Configuration

With a built-in web server, the iT300 and iT301 are user-configurable from a standard web browser.

Typical users and applications

Instrumentation engineers, system engineers, operations personnel, process automation specialists and reliability engineers. Ideal markets and applications include condition monitoring, wind power, pulp and paper plants, power generation plants, cement plants, food and beverage manufacturing, metals processing, machine tool, mining, nuclear power plants, oil and gas processing pharmaceutical manufacturing, rail operations, water and wastewater treatment plants, defense.

iT Series Product Comparison

Focus on the features that you need. Quickly and easily compare our series of intelligent transmitters side by side in the chart below. You can also download the iT series product comparison for a helpful reference to share with your colleagues.

[table “1” not found /]
DOWNLOAD PRODUCT COMPARISON PDF >
